In the era of rapid development in industrial automation and the Internet of Things (IoT), interconnection and interoperability between devices have become crucial for enhancing system efficiency and intelligence.However, many traditional industrial devices still communicate via serial ports (such as RS232 and RS485), while modern network environments primarily rely on Ethernet (TCP/IP).Achieving seamless integration between serial devices and networks has become an urgent issue in industrial settings.

To address this challenge, WideIOT offers a cost-effective, high-performance protocol converter solution.The core logic involves using dedicated devices (protocol converters) as "data interpreters" to perform bidirectional conversion and transparent transmission between two communication formats.For instance, the WC112 is equipped with one 100Mbps Ethernet port and two RS485/232 serial ports, supporting Modbus RTU to Modbus TCP conversion.It can hang multiple serial devices on a single bus, automatically mapping addresses to distinguish devices, providing a reliable solution for device communication.

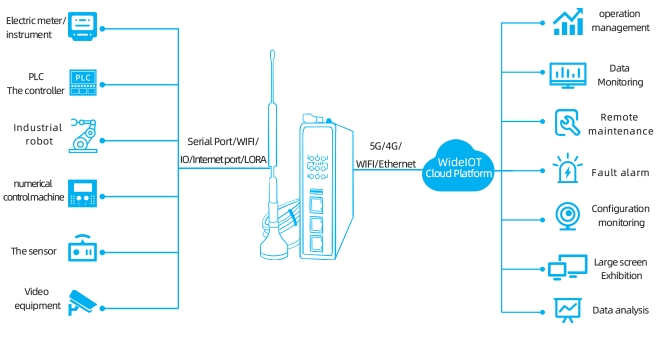

In simple terms, the process involves encapsulating serial data (such as Modbus RTU protocol data from RS232 or RS485 interfaces) emitted by serial devices into TCP/IP network packets for transmission to Ethernet devices (such as computers, SCADA systems, or cloud platforms). Simultaneously, network packets sent by Ethernet devices are decapsulated and converted back into serial data for transmission to serial devices, ensuring no data loss, delay, or tampering throughout the process.

Functional Applications

Industrial Automation

• Scenario: PLCs and sensors with serial ports need to be connected to SCADA systems.

• Solution: Use a protocol converter to convert Modbus RTU devices to Modbus TCP for remote monitoring.

• Effect: Reduces wiring costs and enhances data real-time performance.

Intelligent Buildings

• Scenario: Air conditioning and elevator systems use serial communication and need to be integrated into building management systems (BMS).

• Solution: The converter translates RS485 data into the MQTT protocol for upload to a cloud platform.

• Effect: Enables energy consumption analysis and predictive maintenance for devices.

Energy Management

• Scenario: Photovoltaic inverters and electricity meters need to upload data via 4G/5G networks.

• Solution: The converter supports WiFi and converts serial data to Ethernet data for remote meter reading.

• Effect: Reduces manual inspection costs and improves data accuracy.
