Application Solution‌

Industry Background

Against growing water‑supply‑demand conflicts, stricter agricultural water‑saving regulations and normalized water‑environment governance, wastewater recycling and reuse has become a critical technical pathway to close agricultural irrigation water gaps and advance green low‑carbon farming. Treated effluent (reclaimed water) processed via biochemical treatment, sedimentation and filtration meets quality standards for farmland irrigation, woodland greening and ecological water replenishment. It effectively substitutes surface‑water and groundwater resources, delivering dual benefits of water‑resource circularity and pollutant‑emission reduction.

Modern reclaimed‑water irrigation workflows cover a complete chain: wastewater purification, reclaimed‑water storage & regulation, booster pumping & distribution, and zoned field irrigation. The whole system integrates industrial controllers, water‑quality monitors, flow meters, soil‑sensing devices and power‑transmission equipment. Nevertheless, traditional irrigation districts commonly suffer from heterogeneous incompatible devices, fragmented datasets, weak process inter‑linkage, delayed control and coarse O&M practices. Low reclaimed‑water utilization prevents standardized, refined digital operation and undermines project performance.

Core Industry Pain Points

1. Heterogeneous Devices & Isolated End‑to‑End Data

The full reclaimed‑water irrigation workflow incorporates wastewater‑treatment PLCs, water‑quality analyzers, pressure‑level transmitters, variable‑frequency pump drives, soil‑moisture sensors and video cameras. Multi‑brand hardware uses disjointed communication protocols and signal types without standardized data interfaces. Independent subsystems create severe data silos across wastewater treatment, reclaimed‑water storage, pressurized conveyance and field irrigation. Cross‑process coordination and unified dispatching become major technical bottlenecks for smart retrofits.

2. Manual‑Driven O&M with Passive Risk‑Prone Operation

Conventional irrigation sites rely on periodic on‑site patrols, manual attendance and paper‑based logs, lacking 24/7 digital monitoring and early‑warning capabilities. Abnormal conditions such as fluctuating reclaimed‑water quality, pipe‑network pressure spikes, pump overload & dry‑running, tank over‑leveling and valve jamming can only be addressed after incidents occur. Without full‑lifecycle digital equipment ledgers, maintenance, failure and repair records are scattered and untraceable. This leads to hardware damage, non‑compliant irrigation and water waste, together with high management costs and latent safety hazards.

3. Rigid Irrigation Logic & Low Resource‑Use Efficiency

Legacy irrigation runs on fixed‑schedule “one‑size‑fits‑all” routines. It fails to dynamically adjust according to reclaimed‑water quality shifts, hydraulic pipe‑network status, field soil moisture, real‑time meteorology and crop water‑demand patterns. Lacking algorithm‑driven decision support, systems cannot allocate water on‑demand. Common problems include flood‑style over‑irrigation and uneven zoned water supply, which waste valuable reclaimed‑water resources, push up energy consumption and compromise agricultural irrigation standards, greatly lowering overall circular‑water‑reuse benefits.

WideIOT Integrated Solution for Reclaimed‑Water Smart Irrigation

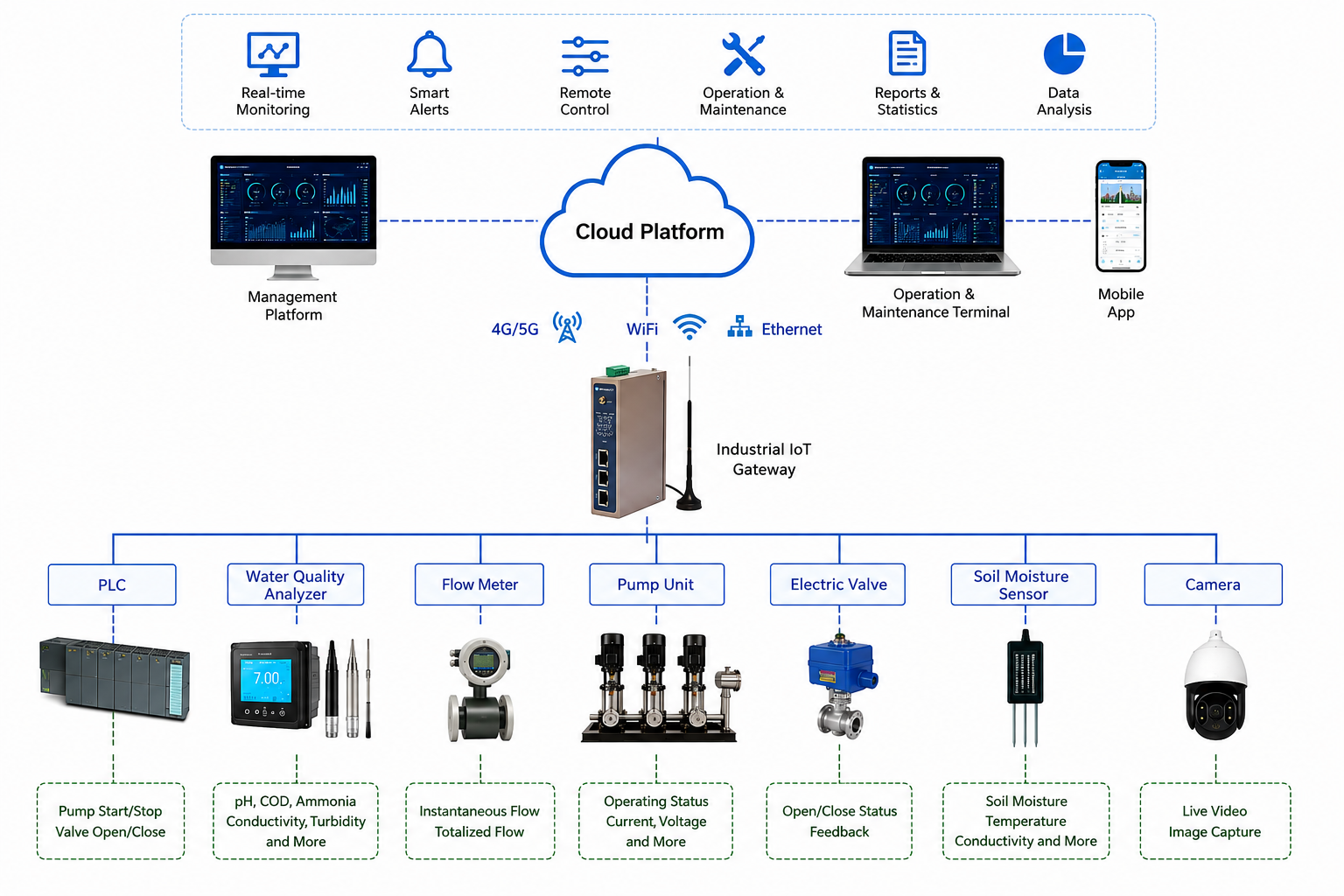

WideIOT delivers a high‑reliability end‑to‑end IoT solution for wastewater‑reuse smart irrigation. By deploying industrial intelligent gateways to connect PLCs, water‑quality monitors, flow meters, pump units, electric valves, soil‑moisture sensors and surveillance cameras, the system collects real‑time datasets including pump on/off status, valve positions, liquid level, water pressure, flow volume, water‑quality metrics, soil conditions and live video feeds. Data is securely transmitted to the remote cloud monitoring platform over 4G/5G, Wi‑Fi or Ethernet. Enabled capabilities include remote monitoring, intelligent multi‑level alerts, bidirectional remote control, digital O&M management, report generation and data analytics to help operators boost reclaimed‑water efficiency and achieve refined irrigation governance.

Scope of Field‑Device Data Collection

• Industrial Control Equipment: Wastewater‑treatment PLC, pumping‑station PLC, zoned‑irrigation PLC. Collect runtime status, process parameters, linkage logic and fault codes.
• Water‑Quality Monitoring Equipment: COD, ammonia‑nitrogen, total‑phosphorus, total‑nitrogen, pH, turbidity and dissolved‑oxygen sensors. Capture key effluent quality indicators to guarantee irrigation‑water compliance.
• Fluid & Pressure Instruments: Electromagnetic / turbine flow meters, pipe‑network pressure transmitters, reservoir level transmitters. Gather instantaneous & cumulative water‑flow, real‑time pipe pressure and tank high/low‑level status.
• Power Conveyance Equipment: Irrigation pumps, variable‑frequency control cabinets, booster & stabilizing pumps. Collect start‑stop state, current, voltage, power, runtime, VFD output frequency and overload / phase‑loss fault signals.
• Field Actuation Equipment: Electric regulating valves, solenoid irrigation valves, zone water‑control valves. Capture valve status & opening percentage, fault signals; support remote adjustment.
• Field Perception Sensors: Soil‑moisture sensors (humidity, temperature, salinity), meteorological sensors (rainfall, solar irradiance, wind speed, ambient temperature). Supply field soil‑environment inputs for precision irrigation decisions.
• Video‑Surveillance Equipment: IP cameras & PTZ cameras. Provide live visual oversight for wastewater‑treatment plants, pumping stations and irrigated zones.

Core Functional Modules

1. Unified Multi‑Source Heterogeneous‑Data Acquisition for End‑to‑End Process Awareness

WideIOT industrial gateways integrate PLC controllers, water‑quality analyzers, sensing terminals, power equipment and video streams. Standardized high‑frequency (second‑level) collection covers reclaimed‑water pH, turbidity, dissolved‑oxygen, liquid level, pressure, instantaneous / cumulative flow, soil temperature‑humidity‑salinity, equipment metrics and live video. It eliminates multi‑protocol data silos and builds a full‑process visual perception system.

2. Multi‑Level Threshold‑Based Intelligent Alerts for Proactive Anomaly Prediction

Fully configurable safety thresholds and tiered alert workflows trigger real‑time risk assessment for water‑quality non‑compliance, tank over‑range levels, abnormal pipe‑network pressure, pump overload, valve failure and device offline events. Notifications are pushed via multi‑channel channels, and automated alert‑history logs support fault tracing, root‑cause analysis and hazard rectification to mitigate operational risks.

3. Bidirectional Remote Interlocking Control Enables Unattended Irrigation Districts

Dual remote / local control modes are supported via gateway‑PLC bidirectional communication. Authorized operators remotely start‑stop pumps, adjust VFD frequency, modulate electric‑valve opening and toggle irrigation‑zone workflows. Automatic safety interlocks shut down conveyance & irrigation hardware during critical anomalies, improving emergency‑response capacity and enabling routine unattended district‑site operation.

4. Visual Operation Dashboard for Cross‑Domain Collaborative Dispatching

Centralized visualization dashboards display equipment topology, process workflows, live operating parameters, active alarms, O&M progress, camera feeds and water‑consumption statistics. End‑to‑end situational awareness spans wastewater‑treatment all the way to field irrigation, supporting science‑dependent scheduling of water resources, field hardware and human resources.

5. Digital Equipment Ledger for Full‑Lifecycle Asset Governance

Centralized electronic asset archives store equipment model‑specifications, installation locations, commissioning timestamps, maintenance records, fault logs and spare‑part replacement history. Functions include real‑time health uation, maintenance‑cycle reminders and digital asset inventory, delivering data foundations for refined maintenance, equipment renewal and failure root‑cause analysis.

6. Closed‑Loop Digital Work‑Order Management for Standardized O&M

Complete electronic work‑order workflows cover inspection, preventive maintenance, repair and acceptance. Task assignment, field execution, log upload and audit‑approval form full traceable closed‑loop management. O&M activities become quantifiable, auditable and standardized to resolve informal, undocumented legacy maintenance practices.

7. Multi‑Dimensional Statistical Analytics for Compliance & Optimized Decision‑Making

Auto‑generated daily / monthly / yearly reports track water consumption, equipment runtime, alarms, energy‑use and maintenance metrics. Precise statistics of total reclaimed‑water reuse, zoned irrigation volumes and energy‑consumption indicators satisfy operational KPI uation, cost accounting and regulatory reporting obligations while guiding system upgrades.

8. Big‑Data‑Driven Intelligent Scheduling for Water‑Saving Precision Irrigation

Multi‑factor data‑fusion algorithms incorporate reclaimed‑water output stability, soil‑moisture conditions, meteorological inputs and crop water‑demand models to dynamically optimize irrigation strategies. The system intelligently adjusts irrigation duration, conveyance pressure and supply flow. Replacing rigid fixed‑timing schedules, it delivers on‑demand precision water supply, maximizes reclaimed‑water utilization and cuts energy & water losses while satisfying crop‑growth water requirements.

Solution Benefits

Combining IoT, big‑data analytics and intelligent control, the WideIOT smart irrigation‑with‑reclaimed‑water system addresses long‑standing pain points: coarse governance, fragmented datasets, excessive energy‑use and resource waste. It establishes a unified “monitoring — analysis — dispatching — control — O&M” smart‑management framework. The solution unlocks wastewater‑reuse resources, realizes water conservation, pollution abatement and cost reduction, and raises overall digital‑refined operational standards for irrigation districts. It constitutes a lightweight, high‑value implementation option for smart‑agriculture and digital‑water‑resource projects worldwide.
