Industry Background

Pickling is a critical metal‑surface‑treatment process. It removes mill scale, rust and surface contaminants from work‑pieces to prepare materials for downstream cold rolling, galvanizing and coating operations. Strict control over acid‑bath concentration, temperature, liquid level and processing duration is essential. Combined with tightening environmental regulations governing acid‑fume exhaust emissions, traditional manual management workflows create widespread operational challenges for metal manufacturers.

Even where pickling lines run semi‑automatically via PLC controllers, equipment often operates in isolation, and production data relies on manual logging. Common pain points include delayed fault detection, excessive acid‑chemical consumption, inconsistent part quality and emission‑control risks, hurting plant profitability while exposing businesses to environmental‑non‑compliance liabilities.

Key Pain Points of Conventional Pickling Lines

1. Isolated Equipment Data & Heavy Dependence On‑Site Attendance

Pickling tanks, circulation pumps, heating systems and acid‑mist scrubbers run under separate PLC control with limited cross‑device data exchange. Operations depend heavily on manual patrols and on‑site operators. High labour costs persist, and human observation gaps lead to missed conditions and subjective judgement errors.

2. Manual Process‑Data Logging Creates Operational Delays

Core parameters including acid temperature, concentration and liquid level are manually transcribed and reported at low sampling frequencies. Process anomalies are detected late, increasing workpiece scrap risk and introducing potential workplace‑safety hazards.

3. Limited Oversight of Exhaust‑Treatment Assets; Lack of Valid Environmental‑Compliance Data

Real‑time operating status of acid‑mist scrubbers cannot be reliably tracked. Data from pickling production equipment and exhaust‑gas treatment units remain disconnected. Plants struggle to uate scrubber performance, conduct internal maintenance, or generate complete audit‑ready datasets for environmental regulators.

WideIOT IoT‑Enabled Pickling‑Line Solution for Refined Process Management

WideIOT delivers an IoT‑based data‑acquisition solution for pickling‑line facilities.

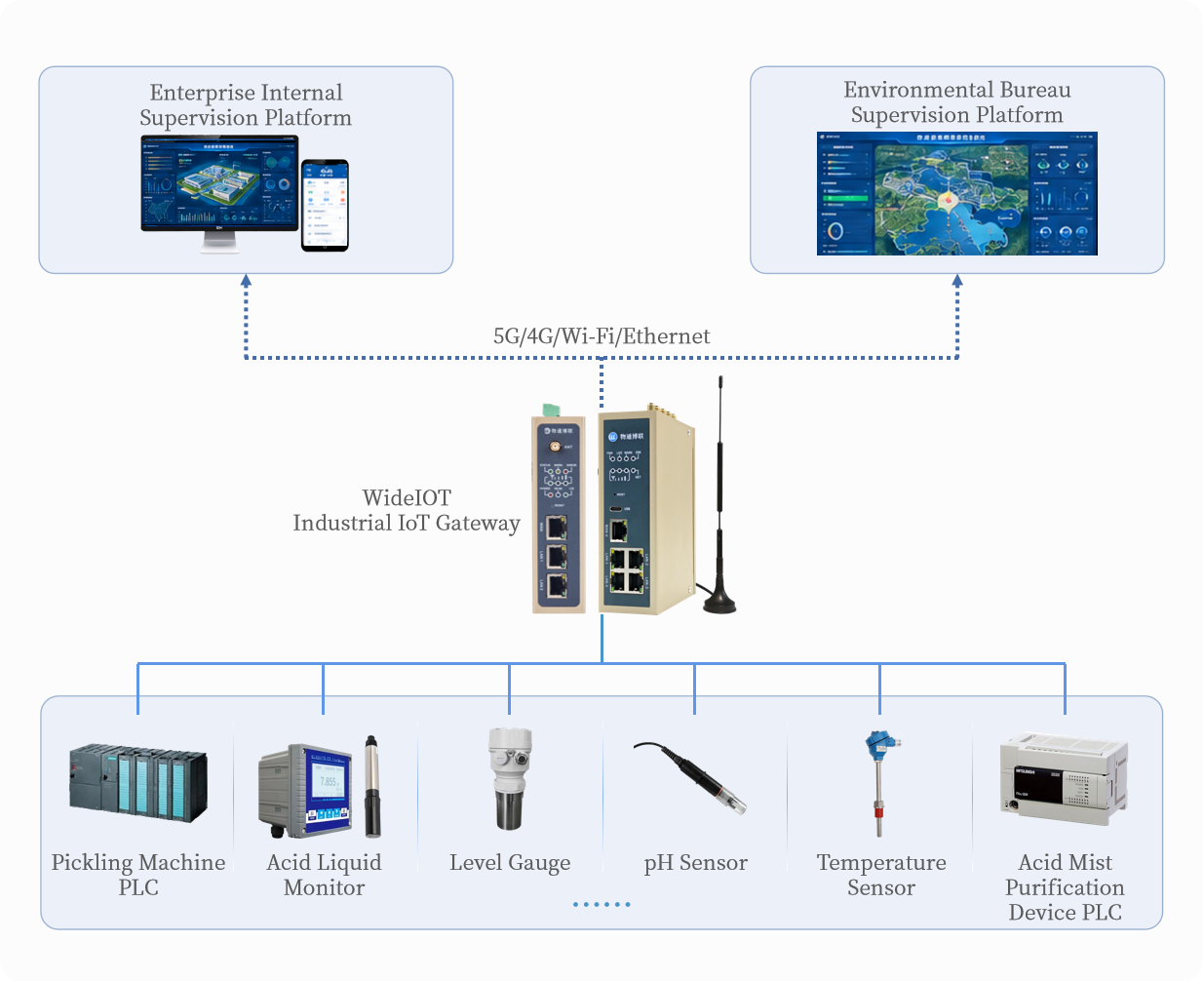

WideIOT industrial intelligent gateways connect to pickling‑process PLCs, acid‑condition monitors, level transmitters, pH sensors, temperature transmitters and acid‑mist‑scrubber PLCs. Over 5G/4G, Wi‑Fi or Ethernet networks, gateways collect equipment runtime status, process parameters and exhaust‑treatment metrics. Data feeds integrate with internal plant management platforms and environmental‑reporting systems to enable remote monitoring, configurable anomaly alerts, authorised remote control and analytical reporting for refined digital pickling‑process governance.

Core Solution Capabilities

1. Multi‑Device Compatibility for Demanding Shop‑Floor Conditions

Industrial gateways provide serial, Ethernet and IO interfaces, supporting mainstream PLC, instrument and sensor communication standards. They accommodate mixed‑model equipment and complex on‑site network environments for straightforward field deployment.

2. Automated Equipment‑Data Collection to Eliminate Manual Logging

Gateways automatically aggregate key datasets: equipment run / standby / fault status; process metrics such as acid concentration, bath temperature, liquid level, circulation flow and treatment duration; plus equipment fault and exhaust‑treatment operational records. Real‑time digital access replaces error‑prone manual paper logging.

3. Customisable Anomaly Alerts for Proactive Risk Mitigation

Configurable threshold rules trigger multi‑channel alerts via SMS and email for deviations such as abnormal pickling‑bath temperature, out‑of‑range acid‑solution parameters and exhaust‑emission excursions. Maintenance teams rapidly locate affected stations to minimise workpiece scrap, unplanned downtime and environmental‑compliance risks.

4. Multi‑Protocol Multi‑Destination Data Forwarding for Internal & External Integration

Supported protocols include MQTT, Modbus, OPC UA, MySQL and HTTP. The gateway seamlessly feeds data to enterprise MES / ERP platforms and transmits exhaust‑related metrics to environmental‑supervision systems. Authentic, complete records support corporate compliance reporting.

5. Authorised Remote‑Command Capabilities for Faster Emergency Response

With role‑based permission controls, qualified supervisors may remotely start‑stop or adjust operating parameters for pickling equipment and acid‑mist scrubbers. Fast reaction to unexpected process events stabilises production continuity.

6. Visualised Reporting to Inform Process Optimisation

Aggregated logs covering equipment runtime, alarms, production throughput and environmental‑performance indicators generate multi‑dimensional visual reports. Manufacturers review historical operations to refine pickling recipes, optimise production scheduling and track environmental‑performance targets for continuous operational improvement.

Solution Benefits for Higher Quality & Green‑Manufacturing Goals

After deployment, plant operators gain full visibility across pickling‑line equipment health and process parameters. Early identification of equipment faults and abnormal chemical consumption supports better asset utilisation, lower scrap rates and fewer unplanned production stops.

The system enables lean production workflows and establishes a solid foundation for environmental‑compliance management. It delivers reliable digital infrastructure supporting broader digital‑transformation and green‑manufacturing initiatives for metal‑processing manufacturers worldwide.
