How Industrial Intelligent Gateways Enable Automatic Fault Reporting When Thresholds Are Exceeded

In an automated production line at an automotive component manufacturing plant, a critical piece of equipment—a CNC machining center—continuously monitors the spindle's operating temperature through temperature sensors. One early morning, a cooling system failure caused the spindle temperature to rise abnormally to 85°C (the normal threshold being 70°C). However, the on-site duty personnel failed to notice the issue promptly. Due to the lack of timely shutdown for maintenance, the spindle suffered permanent damage from overheating, resulting in a 12-hour production line shutdown and direct economic losses exceeding 500,000 yuan. Such unplanned downtime caused by undetected equipment abnormalities has become a pressing pain point in the digital transformation of the manufacturing industry.

Solution

WideIOT utilizes industrial intelligent gateways as the core hub for data collection, edge analysis, and alarm triggering, coupled with an equipment operation and maintenance management cloud platform, to construct a closed-loop threshold exceedance fault reporting system encompassing "sensing-analysis-alarming-handling." Through the gateway, real-time collection and edge computing judgment of industrial equipment parameters are achieved. The moment data exceeds the preset threshold, multi-channel alarms are automatically initiated, and fault details are simultaneously pushed to the operation and maintenance team, fundamentally transforming the passive mode of "manual monitoring" and "post-event remediation" in traditional industrial scenarios.

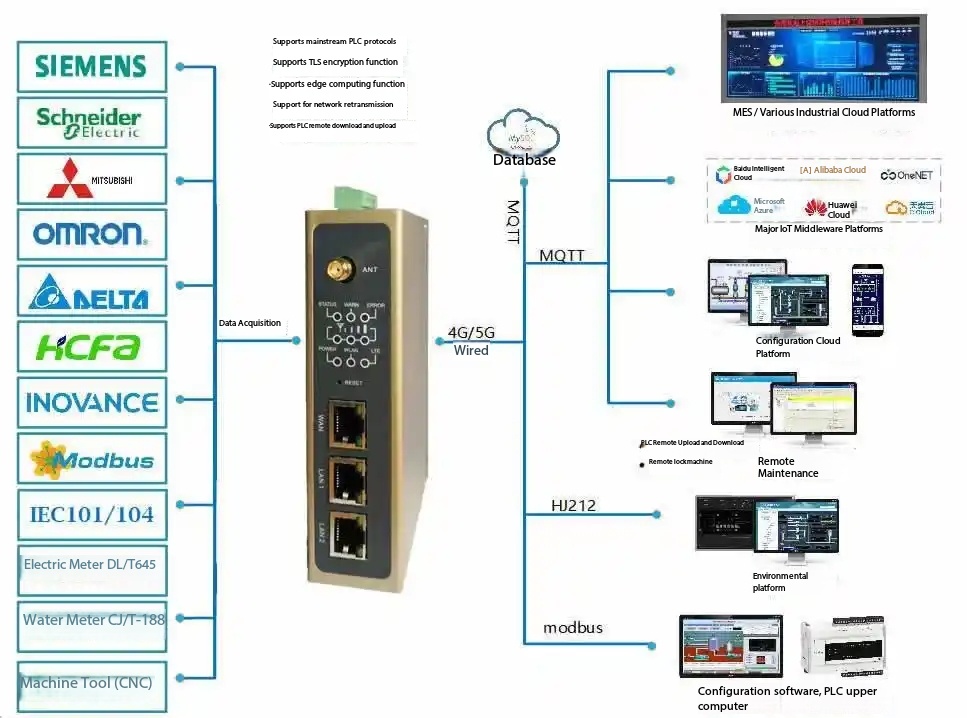

1. Equipment Access and Parameter Configuration Phase: Deploy WideIOT industrial intelligent gateways in the production workshop. Through their rich interfaces, including Ethernet ports and RS232/485, seamlessly connect various industrial equipment such as reactors, pumps, and sensors, supporting mainstream PLCs from Siemens, Mitsubishi, and other manufacturers, as well as multiple industrial protocols like OPC UA and Modbus. In the gateway configuration interface, operation and maintenance personnel can set precise threshold ranges for key parameters such as temperature, pressure, vibration, and current based on equipment process requirements, including normal ranges, high alarms, high-high alarms, low alarms, and low-low alarms, while configuring collection cycles and reporting rules.

2. Real-time Collection and Edge Computing Phase: Upon activation, the gateway collects equipment operating parameters in real-time according to preset rules and performs local analysis and processing of the data through its built-in edge computing module. Unlike traditional DTU data transmission modes, the gateway can execute logic judgment and rule calculation functions locally. For example, when detecting that the reactor temperature exceeds 150°C, it immediately determines it as a threshold exceedance and triggers a local alarm without waiting for data to be uploaded to the cloud for processing, significantly reducing alarm delays.

3. Automatic Alarming and Information Push Phase: Once a threshold exceedance is determined, the gateway simultaneously initiates a dual alarm mechanism: on the one hand, it issues warnings through local audible and visual alarms to alert on-site personnel; on the other hand, it uploads fault information (including equipment ID, exceeded parameter, current value, threshold range, etc.) to the equipment operation and maintenance management platform and automatically pushes it to operation and maintenance supervisors and relevant management personnel through channels such as WeChat, SMS, and email.

4. Fault Handling and Data Traceability Phase: Upon receiving alarm information, operation and maintenance personnel can view fault details through the mobile or computer-based platform, which automatically generates electronic work orders and assigns handling tasks. After the fault is resolved, the gateway recollects equipment parameters and confirms normal operation. The system automatically records the alarm start and end times, handling process, and parameter change curves, forming a complete fault archive to provide a basis for subsequent data analysis and threshold optimization.
