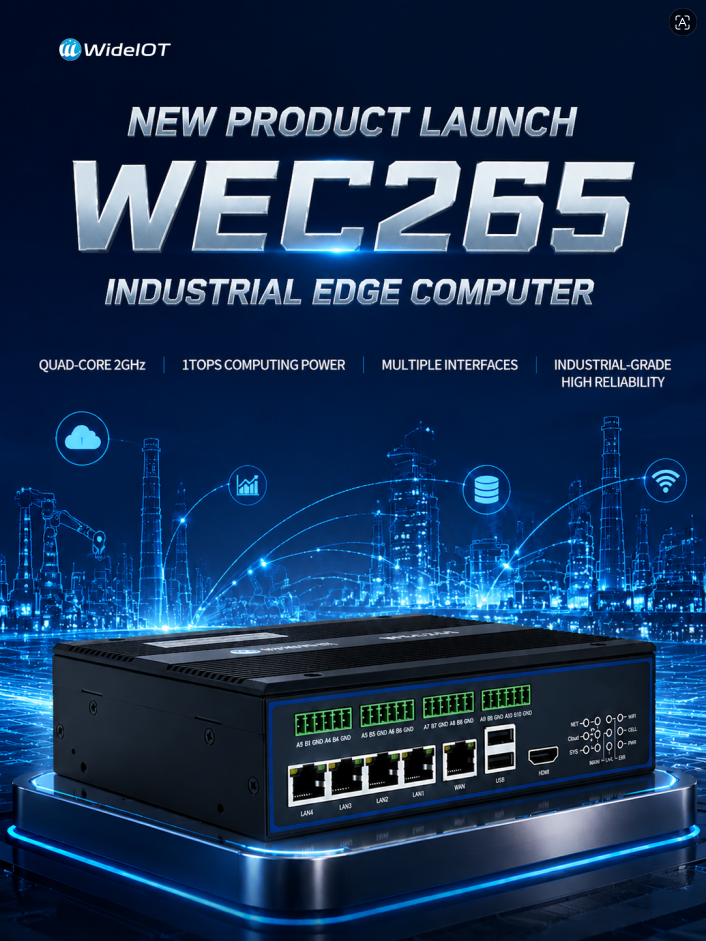

With the accelerated advancement of industrial digital transformation, edge computing has become the core support for device networking, data intelligence, and cloud collaboration. WidelOT proudly launches the WEC265 Industrial Edge Computer, featuring quad-core high-performance computing, full-scenario rich interfaces, industrial-grade high-reliability design, and an open software ecosystem. It provides one-stop solutions for edge data acquisition, computing, cloud connectivity, and remote operation & maintenance in energy & power, intelligent manufacturing, municipal transportation, energy storage & photovoltaic, and other fields, solving core pain points such as difficult industrial device access, poor protocol compatibility, weak edge computing power, and high O&M costs.

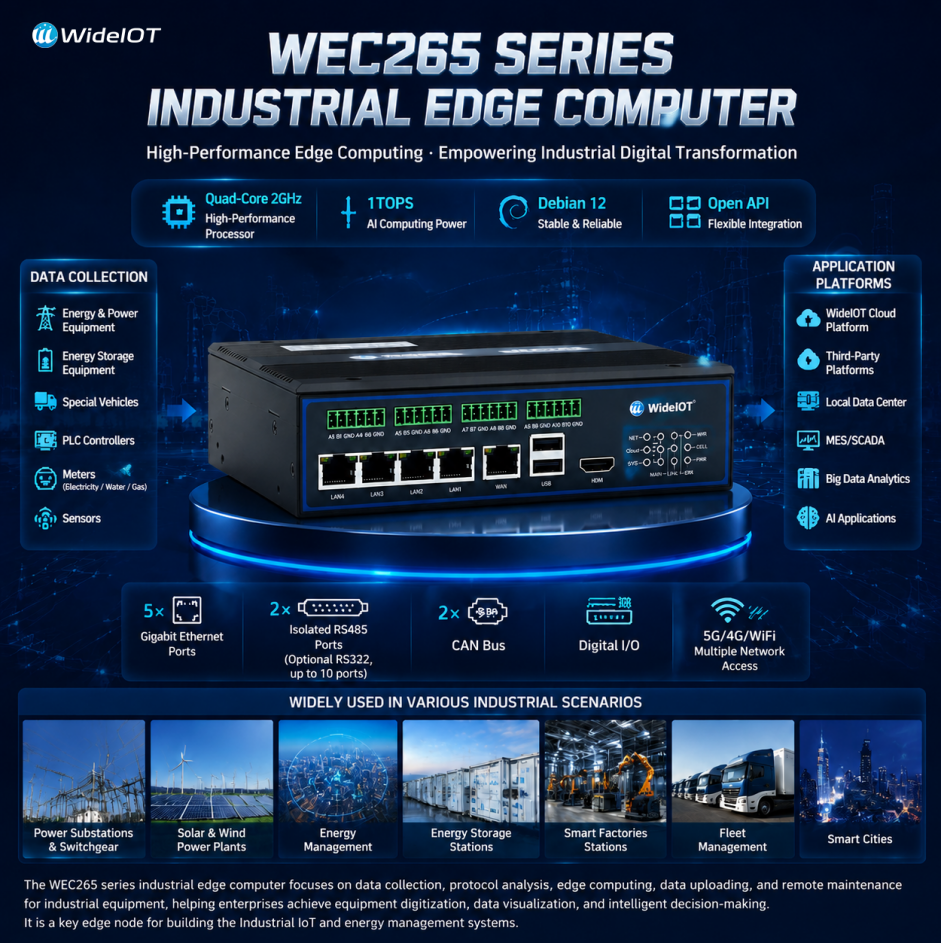

The WEC265 series is a high-computing IoT edge node platform designed by WidelOT for industrial digital applications, focusing on industrial equipment data collection, protocol parsing, edge computing, data uploading to the cloud, and remote maintenance. With a quad-core 2GHz processor and 1TOPS computing power, it handles most complex edge computing scenarios. It supports the latest Debian 12 OS and open APIs for easy algorithm and application deployment.

01 High-Performance Hardware Platform: Building a Robust Edge Computing Foundation

The WEC265 is equipped with a high-performance industrial-grade chip to support complex edge intelligent computing:

• CPU: Quad-core Cortex‑A55 @ 2.0GHz, efficiently processing concurrent multi-tasks
• NPU: Integrated RKNN NPU AI accelerator with 1TOPS computing power, supporting local AI algorithm deployment
• VPU: Supports 1080P@60fps encoding and 4K@60fps hardware video decoding, with video processing capabilities
• Memory & Storage: 4GB/8GB RAM + 16GB/32GB eMMC; optional 256GB/512GB/1TB SSD expansion
• OS: Debian 12 (Linux 6) stable system with open APIs for fast adaptation to industry algorithms and applications

02 Full-Scenario Interface Configuration: Full Coverage of Device Connectivity

The hardware interfaces are fully adapted to industrial sites, enabling seamless connection to various devices:

• Network: 5G/5G RedCap, 4G Cat4/Cat1, dual-band Wi‑Fi, BLE 4.2 (optional), GNSS positioning (optional)
• Ethernet: 5× Gigabit Ethernet (4 LAN + 1 WAN, 1.5kV isolation)
• Serial Ports: 2× RS232/485 (expandable to 10 channels), 15kV ESD protection, up to 255 slaves per port
• CAN: Isolated CAN FD, 5000VDC isolation, supports 110 nodes, suitable for automotive and industrial control
• IO & Expansion: 2× isolated DI + 2× relay outputs; supports USB, HDMI, TF card, eSIM, touchscreen expansion
• Vehicle Adaptation: 3750V high-isolation ignition signal, low-power mode, meeting harsh special vehicle requirements

03 Industrial-Grade High-Reliability Design: Stable Operation in Harsh Environments

Built for industrial scenarios, ensuring 7×24h uninterrupted stable operation:

• Wide Temp & Voltage: DC 9V–35V power input; operating/storage temp: -40°C to 85°C; humidity: 5%–95% non-condensing
• Strong Anti-Interference: Multiple electromagnetic isolation, ESD protection, EMC certification, lightning and surge protection
• Robust & Durable: Metal enclosure, IP30 protection, fanless cooling; dimensions 186×141×49.8mm; supports DIN-rail, wall-mounted, and desktop installation

04 Full Protocol Compatibility + Secure Cloud Connectivity: Secure and Smooth Data Interconnection

Built-in rich industrial protocol library covering mainstream industry protocols:

• Full Protocol Support: Modbus, DLT645, CJ188, PLC, instruments, sensors, and more
• Multi-Platform Access: MQTT, OPC UA, Modbus TCP, IEC104, IEC 61850, BACnet; connects to multiple IoT platforms, SCADA, energy management, and power monitoring systems simultaneously
• Secure Transmission: VPN/TLS encryption, hardware/software encryption, offline reconnection, breakpoint resume; full-process data security
• Convenient O&M: Local/remote configuration, self-diagnosis and self-recovery, remote maintenance via device link, greatly reducing on-site costs

05 Wide Industry Adaptation: Empowering Digital Intelligence Across All Sectors

The WEC265 Industrial Edge Computer is widely applicable to meet core industry needs:

• Energy & Power: PV/wind farms, energy storage stations, power distribution/substations, charging/swapping stations, energy consumption management
• Industrial Manufacturing: Smart factories, PLC equipment monitoring, heat exchange/pump & valve control
• Municipal & Transportation: Smart water utilities, smart cities, special vehicle management, on-board monitoring
• Integrated Management: Carbon & energy management, smart heating, water conservancy monitoring, power O&M

For more product details and application solutions of the WEC265, please contact our engineering team.
