With the rapid development of manufacturing and the arrival of the Industry 4.0 era, CNC machine tools—as core equipment in manufacturing—have made data acquisition and monitoring increasingly important for improving production efficiency and optimizing production processes. As hardware devices designed specifically to connect CNC machine tools with the industrial internet, CNC machine tool data acquisition gateways play a vital role. This article explores their functions and features in detail. 1. Data Acquisition
The primary function of a CNC machine tool data acquisition gateway is to collect data in real time from the various sensors and controllers on CNC machine tools. This data includes spindle speed, feed rate, position information, temperature, vibration, and other parameters—covering every aspect of machine operation. In addition, the gateway supports multiple data formats and communication protocols, such as MTConnect, OPC UA, and Modbus, ensuring compatibility with CNC systems of different brands and models. This multi-protocol support allows the gateway to adapt to a wide range of machine tools and achieve unified data acquisition.

2. Data Transmission

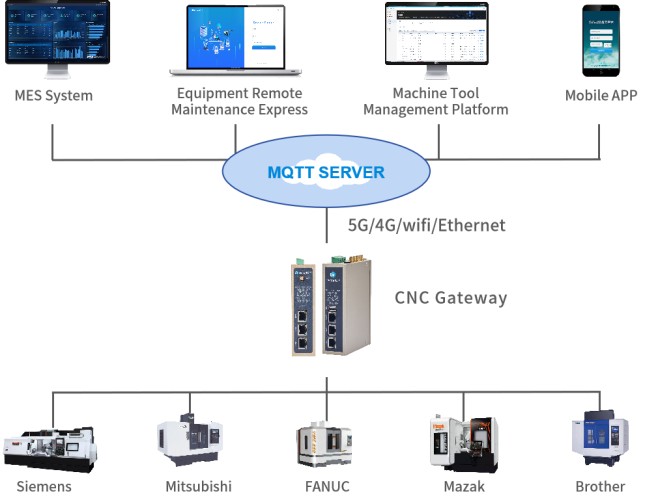

Collected data must be transmitted to upper-level management systems or cloud platforms through effective means. CNC machine tool data acquisition gateways support both wired and wireless transmission to ensure the real-time nature and accuracy of data. The gateway also supports multiple network protocols, such as HTTP, MQTT, and TCP/IP, ensuring the security and reliability of data transmission. These capabilities allow data to be transmitted stably to remote servers or data centers, laying the foundation for subsequent data analysis and processing.

3. Data Preprocessing
Before data is transmitted, CNC machine tool data acquisition gateways can also perform data preprocessing. They can locally filter, normalize, and compress collected data to reduce transmission volume and improve data quality. In addition, the gateway can perform simple data analysis and computation—such as tracking machine tool operating status and production efficiency—providing preliminary data support for enterprise production management.

4. Remote Monitoring and Fault Diagnosis
CNC machine tool data acquisition gateways are not limited to data acquisition and transmission—they also offer remote monitoring and fault diagnosis capabilities. Management personnel can view machine tool operating status and machining data anytime, anywhere via the internet, greatly improving management convenience and efficiency. At the same time, by analyzing machine tool operating data, the gateway can promptly detect and diagnose faults, and even predict potential faults and take corresponding preventive measures. This helps reduce fault-related downtime and improve production efficiency.

5. Scalability and Compatibility
CNC machine tool data acquisition gateways are designed with scalability and compatibility in mind. They support multiple machine tool devices and communication protocols, making it easy for enterprises to expand and upgrade their equipment. The gateway also provides open API interfaces for convenient data exchange and functional expansion with other systems. This design allows the data acquisition gateway to adapt to evolving requirements, providing strong support for enterprise intelligent upgrades.

6. Security and Reliability
Security is an issue that cannot be overlooked during data transmission. CNC machine tool data acquisition gateways employ encryption technologies and identity authentication mechanisms to ensure the security and confidentiality of data transmission. In addition, the gateway offers high reliability and can operate stably in harsh industrial environments—providing reliable data support for enterprise production management and decision-making.
