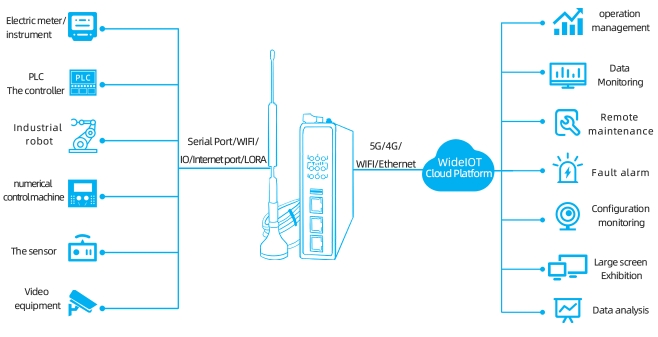

WideIOT industrial intelligent gateway is a data acquisition device designed for a variety of industrial IoT scenarios. It can collect data from PLCs, instruments and meters, CNC machine tools, industrial robots, sensors, and other equipment, and upload the data to cloud platforms or local host computers. It enables functions such as remote monitoring, fault alarms, remote control, and remote maintenance, allowing equipment manufacturers and equipment users to check equipment status and process parameters at any time, thereby enabling timely management and control to ensure the safety and stability of industrial production.

WideIOT industrial intelligent gateway supports networking methods including 5G/4G, Wi-Fi, and Ethernet. It should be noted that only one networking method can be selected at a time; two methods cannot be used simultaneously.

When the gateway is set to dial-up mode (4G/5G Internet access mode, requiring a built-in IoT SIM card), the system will start an unattended watchdog program. If it detects that no SIM card is inserted, no antenna is connected, or the mobile account has insufficient balance, it will enter diagnostic mode and restart the network. Therefore, during debugging, if 4G/5G Internet access is not being used, the dial-up network should be disabled first.

When the gateway is set to Wi-Fi mode (where Wi-Fi coverage is available on site), the SSID and password of the target Wi-Fi network must be entered. To access the external network via Wi-Fi, select Client mode; to share the Wi-Fi hotspot with other devices, select AP mode.

When the gateway is set to Ethernet mode (the gateway is connected to devices via an Ethernet cable), select the communication protocol (static IP address, DHCP client, or PPPoE — choose one of the three) to verify the gateway's data communication capabilities.

Gateway Functions

Diverse networking capabilities: Supports 5G, 4G, Wi-Fi, wired Ethernet, fiber optics, LoRa, and other access methods.
Powerful data acquisition capabilities: Built-in support for various protocols for PLCs, instruments and meters, power equipment, industrial robots, machine tools, etc.
Flexible cloud access: Supports connection to remote platforms via MQTT, Modbus, OPC, SQL, and other protocols.
Efficient forwarding center: Supports serial port forwarding and Modbus forwarding, allowing simultaneous access by local and remote systems.
Convenient remote maintenance: Supports remote debugging, diagnostics, and program upload/download for industrial equipment through the device quick-connect feature.
Rich API interfaces: Provides open API interfaces to help customers build advanced and professional Industry 4.0 systems.
